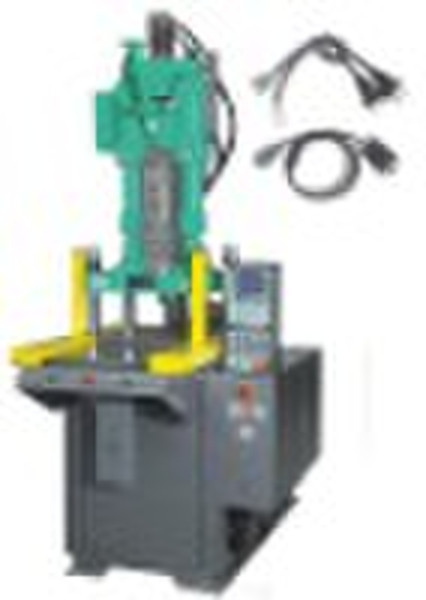

Vertical Molding Machinery(plastic injection machi

molding machinery,plastic injection machine,injection molding machine: 1):Single shuttle table; 2): Part of the machine's specification(can be change depend on your product): Machine Type Unit CV-300D Screw Diameter mm22 25 30 Injection Pressure kg/cm22531 1960 1361 Max. shot weight g32 45 64 oz1.1 1.5 2.3 Screw Speed Max. rpm0-200 Nozzle Retraction Stroke mm150Number of Temperature --Nozzle+3 Clamping Force tons30 Opening Force tons6.6 Min. Mold Height mm100/160 Max. Opening Daylight mm280/340 Mold Plate Diameter mm520*370 Ejector Stroke mm45 Barrel Heating Power kw2.7 Total Wattage kw6.4 Oil Tank capacity L100Machine Dimension(L*W*H) m1.56*1.0*1.95 Machine Weight (about) Tons0.85
